| 加工定制 | 是 |
|---|---|
| 用途 | 噴膠 |
| 功率 | 2.4（Kw） |
| 工作溫度 | 170（℃） |
| 重量 | 50（Kg） |
| 溶膠速度 | 7（Kg/hr） |
| 最大粘度 | 2000000（pcs） |
| 溶筒容量 | 5（Kg） |
| 溫度控制范圍 | 200（℃） |
| 膠桶尺寸 | 31（mm） |
| 電壓 | 220（V） |
| 電流 | 10（A） |
| 售后服務 | 保修一年 |
| 規格 | 108*31*158 |
| 品牌 | 鴻鑫 |
| 型號 | 121 |
鴻鑫馬達膠機（雙頭）
THERMAL PLASTIC COATER (SINGLING)

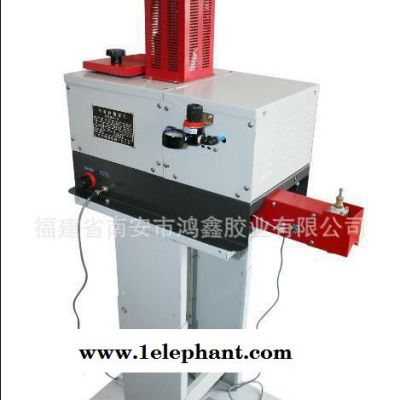

HX-MD02雙頭熱熔膠機
可廣泛用于制鞋業敢朱、木工業窟蓝、紡織業、玩具業篮绿、皮革孵延、電子、電器等各種不同制造業上羽剪。適用于：1.噴膠2.點膠3.抹膠4.填充膠等多種用途茸例、多種規格之槍體噴膠頭，可選擇更換殴燃。熱熔膠是一種不含任何溶劑偷逆，為**固體化熱塑性物質∷够模可達到防治**嚴格的空氣污染的要求卤索，亦完全沒有火災及**等危險。本機采用兩段式過濾設備挨狡，減少噴嘴堵塞現象斯泥。膠桶采用特殊構造，能迅速將固體熱熔膠熔成液體迫赞。本機種之設計適用各種型態之熱熔膠啼阵。噴膠速度快、力道強勁惩赊、穩定均勻电湘。涂布范圍容易控制操作。It can be applied to various industries, such as shoes manufacturing industry packing industry wooden industry, spinning industry toy industry, leather, sanitation accessories, electrics, electricity , and so on.It applies to:1 spraying glue 2 dot gluing 3wiping glue 4 filling glue and other gun spraying glue head with many usages and many specifications, selectable and changeableFusing glue is ** solid hot plastic materials without any solvent Reach the meet of the strictest air pollution prevention, there is no danger of fire and explosion.This machine employs two-section filtrater, which will reduce the blockage of the spraying mouth.This glue pot employs special construction, which can melt the solid fusing glue into liquid.The design of this machine applies to the fusing glue of any type and of any shape.The speed of spraying glue is high, the strength is great, and the solidity is evenThe scope of the coating can be easily controlled and operated.
型號HX-MD01 | HX-MD02 |
機械尺寸DIMENSIONS | 108X31X158cm |
包裝尺寸PACKING SIZE | 115X40X170cm |
凈重N.W. | 40kg |
毛重G.W. | 50kg |
電機功率W | 90w |
電熱功率W | 2.4kw |
電源SOUTCE | 220v |
熔膠速度SPEED OF FUSING GLUE | 7kgHour |
使用粘度ADHESIVE FORCE USED | 1000~200000cps |
操作溫度OPERATING TEMPERATURE | MAX.220C |
膠桶容量VOLUME OF THE GLUEPOT | 3kg |
